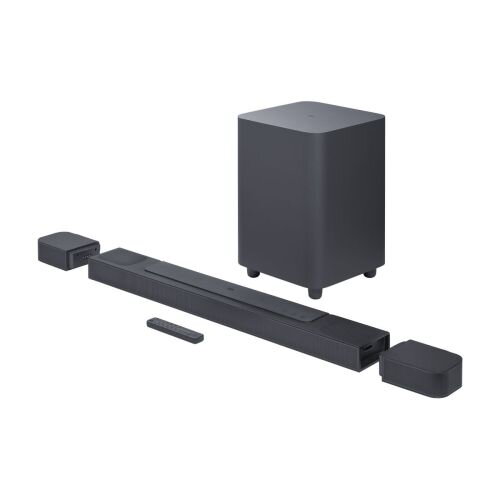

JBL Bar 800 5.1.2 Bluetooth MultiBeam Soundbar Black EU

Technical specifications

General Specifications

• Power Supply: 100 - 240V AC, ~ 50/60Hz


• Networked Standby Power: < 2.0W


• Operating Temperature: 0°C - 45°C

Audio Specifications

• Total Speaker Power Output (Max @THD 1%): 720W


• Soundbar Output Power (Max @THD 1%): 340W


• Surround Speaker Output Power (Max @THD 1%): 2x 40W


• Subwoofer Output Power (Max @THD 1%): 300W


• Soundbar Transducer:




  • 3x (46x90)mm racetrack drivers


  • 3x 0.75" (20mm) tweeters


  • 2x 2.75" (70mm) up-firing full-range drivers






• Surround Speaker Transducer: 1x (46x90)mm racetrack driver


• Subwoofer Transducer: 10” (260mm)


• Frequency Response: 35Hz - 20kHz (-6dB)


• Audio Inputs:




  • 1 Optical


  • Bluetooth


  • Chromecast Built-in


  • AirPlay and Alexa MRM


  • USB (USB playback available in US version; for other versions, USB is for service only)





Dimensions

• Total Soundbar Dimensions (W x H x D):




  • 1174 x 56 x 120 mm / 46.2" x 2.2" x 4.7"






• Main Soundbar Dimensions (W x H x D):




  • 884 x 56 x 120 mm / 34.8" x 2.2" x 4.7"






• Detachable Surround Speaker Dimensions (Each) (W x H x D):




  • 145 x 56 x 120 mm / 5.7" x 2.2" x 4.7"






• Subwoofer Dimensions (W x H x D):




  • 305 x 440.4 x 305 mm / 12" x 17.3" x 12"






• Soundbar Weight: 3.4 kg / 7.4 lbs


• Detachable Surround Speaker Weight (Each): 1.3 kg / 2.8 lbs


• Subwoofer Weight: 10 kg / 22 lbs


• Packaging Dimensions (W x H x D):




  • 1000 x 375 x 475 mm / 39.4" x 14.8" x 18.7"






• Packaging Weight: 18.9 kg / 41.6 lbs

Control and Connection Specifications

• USB Port: Type A


• USB Rating: 5V DC, 0.5A


• Supporting File Format: MP3




  • MP3 Codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3


  • MP3 Sampling Rate: 16 - 48 kHz


  • MP3 Bitrate: 80 - 320 kbps






• Bluetooth Version: 5.0




  • Bluetooth Profile: A2DP 1.2, AVRCP 1.5


  • Bluetooth Transmitter Frequency Range: 2400MHz – 2483.5MHz


  • Bluetooth Transmitter Power: <15dBm (EIRP)






• Wi-Fi Network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)




  • 2.4G Wi-Fi Transmitter Frequency Range: 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)


  • 2.4G Wi-Fi Transmitter Power: < 20dBm (EIRP)






• 5G Wi-Fi Transmitter Frequency Range:




  • 5.15 - 5.35GHz


  • 5.470 - 5.725GHz


  • 5.725 - 5.825GHz






• 5G Wi-Fi Transmitter Power:




  • 5.15-5.25GHz <23dBm


  • 5.25-5.35GHz & 5.47-5.725GHz <20dBm


  • 5.725-5.825GHz <14dBm (EIRP)






• 2.4G Wireless Transmitter Frequency Range: 2406 - 2474MHz


• 2.4G Wireless Transmitter Power: <10dBm (EIRP)

Battery

• Type: Lithium Battery


• Voltage/Capacity: 3.635V, 3283mAh

Video Specifications

• HDMI Video Input: 1


• HDMI Video Output (with Enhanced Audio Return Channel, eARC): 1


• HDMI HDCP Version: 2.3


• HDR Pass Through: HDR10, Dolby Vision

Items included:

• Main Soundbar


• 2x Detachable Wireless Surround Speakers


• 1x Wireless Subwoofer


• Remote Control with 2x Batteries


• Power Cords (up to 8pcs depending on region SKUs)


• 1x HDMI Cable


• 2x L-Shape Wall-Mount Bracket (Main Bar)


• 2x U-Shape Wall-Mount Bracket (for Surround Speakers) Kit with Screws


• 4x Side Caps


• Quick Start Guide


• Safety Instruction and Warranty Card


• Wall Mount Template
