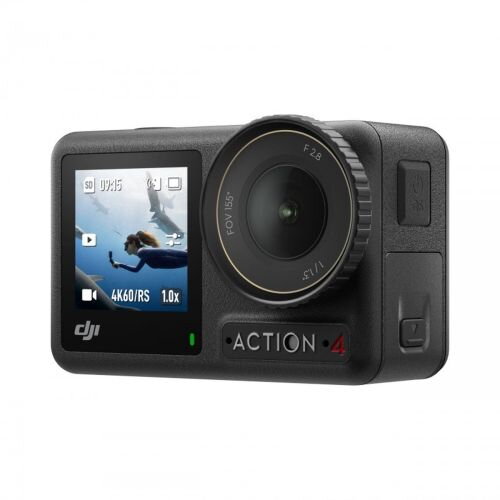

DJI Osmo Action 4 Standard Combo Action Camera 10 MPx 4k 120fps Black EU (CP.OS.00000269.01)

Technical specifications:

General

• Dimensions: 70.5 × 44.2 × 32.8 mm (L × W × H)


• Weight: 145 g


• Waterproof:




  • 18 m without Waterproof Case


  • 60 m with Waterproof Case






• Notes: Close battery compartment, USB-C port cover, and tighten Glass Lens Cover before use. Waterproof Case recommended for long-duration underwater use or high water impact environments. Not suitable for hot springs or corrosive liquids.


• Number of Microphones: 3


• Touchscreens:




  • Front Screen: 1.4-inch, 323 ppi, 320 × 320


  • Rear Screen: 2.25-inch, 326 ppi, 360 × 640






• Brightness: 750 ± 50 cd/m²


• Supported SD Cards: microSD (up to 512 GB)


• Recommended microSD Cards:


• SanDisk Extreme PRO, Kingston CANVAS Go! Plus, Kingston CANVAS React Plus, Lexar Professional 1066x (various capacities)

Camera

• Sensor: 1/1.3-inch CMOS


• Lens:




  • FOV: 155°


  • Aperture: f/2.8


  • Focus Range: 0.4 m to ∞






• ISO Range:




  • Photo: 100–12800


  • Video: 100–12800






• Electronic Shutter Speed:




  • Photo: 1/8000–30 s


  • Video: 1/8000 s to frame rate limit






• Max Photo Resolution: 3648 × 2736


• Zoom:




  • Photo: 4× Digital Zoom


  • Video: Max 2× Digital Zoom


  • Slow Motion/Timelapse: Not available





Still Photography Modes

• Single: Approx. 10 MP


• Countdown Timer: Off/0.5/1/2/3/5/10 s

Video Recording

• Standard Recording Resolutions:




  • 4K (4:3): 3840 × 2880 @ 24/25/30/48/50/60fps


  • 4K (16:9): 3840 × 2160 @ 24/25/30/48/50/60/100/120fps


  • 2.7K (4:3): 2688 × 2016 @ 24/25/30/48/50/60fps


  • 2.7K (16:9): 2688 × 1512 @ 24/25/30/48/50/60/100/120fps


  • 1080p (16:9): 1920 × 1080 @ 24/25/30/48/50/60/100/120/200/240fps






• Slow Motion:




  • 4K: 4× (120fps)


  • 2.7K: 4× (120fps)


  • 1080p: 8× (240fps), 4× (120fps)






• Hyperlapse: 4K/2.7K/1080p @ Auto/×2/×5/×10/×15/×30


• Timelapse:




  • Resolutions: 4K/2.7K/1080p @ 30fps


  • Intervals: 0.5/1/2/3/4/5/6/8/10/15/20/25/30/40 s


  • Durations: 5/10/20/30 mins, 1/2/3/5 hours, ∞





Stabilization

• EIS Modes:




  • RockSteady 3.0


  • RockSteady 3.0+


  • HorizonBalancing


  • HorizonSteady






• Notes:




  • EIS not supported in Slow Motion and Timelapse modes.


  • HorizonSteady available for 1080p (16:9) or 2.7K (16:9) @ ≤60fps.


  • HorizonBalancing available for 1080p (16:9), 2.7K (16:9), or 4K (16:9) @ ≤60fps.





Pre-Recording

• Duration: 5/10/15/30/60 seconds

Video Specifications

• Max Video Bitrate: 130 Mbps


• Supported File System: exFAT


• Photo Format: JPEG/RAW


• Video Format: MP4 (H.264/HEVC)


• Built-in Storage: None (requires microSD card)

Audio Recording

• Specs: 48 kHz, 16-bit, AAC

Battery

• Type: LiPo 1S


• Capacity: 1770 mAh


• Energy: 6.8 Wh


• Voltage: 3.85 V


• Operating Temperature: -20° to 45° C (-4° to 113° F)


• Charging Temperature: 5° to 40° C (41° to 104° F)


• Operating Time: 160 minutes (tested at 1080p/24fps with RockSteady on, Wi-Fi off, and screen off)

Connection

• Wi-Fi:




  • Operating Frequency: 2.400–2.4835 GHz, 5.150–5.250 GHz, 5.725–5.850 GHz


  • Protocol: 802.11 a/b/g/n/ac


  • Transmitter Power (EIRP):


  • 2.4 GHz: < 15 dBm


  • 5.1 GHz: < 16 dBm


  • 5.8 GHz: < 14 dBm






• Bluetooth:




  • Operating Frequency: 2.400–2.4835 GHz


  • Transmit Power (EIRP): <3 dBm


  • Protocol: BLE 5.0





Others

• Guaranteed Software Updates Until: 2026/12/31


• Power Consumption (Standby/Low Power Mode): 0.5W


• Low Power Mode Activation: Within 20 minutes (default)
