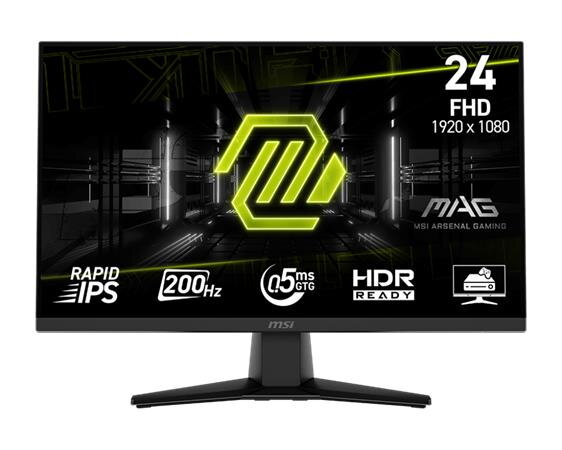

MSI MAG 242F gaming monitor 23,8" Rapid IPS/FHD/200Hz/0,5ms/HDMI/DP/černá

MSI MAG 242F gaming monitor 23,8" Rapid IPS/FHD/200Hz/0,5ms/HDMI/DP/černá

Part No 9S6-3BC51T-007
SKU Number
Vendor TPV
Brand MSI
Series Name Gaming
Segment Name MAG
Segment Name2 MAG 242
Segment Name3 MAG 242F
Model 3BC5
MKT Name MAG 242F
Entity MKT Name
MKT Spec MAG 242F
Website Name MAG 242F
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 23.8" (60.45cm)
Active Display Area (mm) 527.04(H) x 296.46(V)
Curvature Flat
Panel Type Rapid IPS
Resolution 1920x1080 (FHD)
Pixel pitch (mm) 0.2745(H)x0.2745(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range 48~200Hz
HDR (High dynamic range) HDR Ready
SDR Brightness (nits) 300
HDR Brightness (Peak nits) NA
Contrast Ratio 1000:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency 30~230 KHz(H) / 48~200 Hz(V)
Refresh Rate 200HZ
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 0.5ms
Response Time (Tr + Tf) 7.8ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 100%/80%
NTSC (CIE1931 area percentage/overlap) 79%/73%
sRGB (CIE1976 area percentage/overlap) 115%/98%
sRGB (CIE1931 area percentage/overlap) 112%/99%
Adobe RGB (CIE1976 area percentage/overlap) 99%/86%
Adobe RGB (CIE1931 area percentage/overlap) 83%/77%
DCI-P3 (CIE1976 area percentage/overlap) 92%/89%
DCI-P3 (CIE1931 area percentage/overlap) 83%/82%
Rec.709 (CIE1976 area percentage/overlap) 115%/98%
Rec.709 (CIE1931 area percentage/overlap) 112%/99%
Rec.2020 (CIE1976 area percentage/overlap) 67%/67%
Rec.2020 (CIE1931 area percentage/overlap) 59%/59%
Quantum Dot Film NA
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits (8 bits + FRC)
Note_DP 1920 x 1080 (Up to 200Hz)
Note_HDMI 1920 x 1080 (Up to 200Hz)
Note_DVI N/A
VESA DisplayHDR
VESA ClearMR
Delta E
I/O Ports
HDMI 1
HDMI version 2.0b
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.2a
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) NA
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A NA
USB 2.0 Type B NA
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker NA
Webcam NA
Lan Port
Power
Country EU
Territory EU
Entity EU OBD
Power Type Internal Power Board
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 18 (SDR) 30 (HDR)
Annual Energy Consumption (KWh) 27
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating E (SDR) G (HDR)
Adapter's KC safety Number NA
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output NA
PD Output Power NA
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) NA
Adjustment (Height) NA
Adjustment (Pivot) NA
VESA Mounting 100x100mm
Frameless Design Yes
Console Mode YES
HDMI CEC YES
Firmware Update YES
Stand Attachment Method
Stand Type
Stand with Integrated Mini PC Mount
KVM Version
PIP/PBP
Optix Scope
Smart Crosshair
Remote Display
AI Gaming
MSI OLED Care
Scaler FW Update
Carton
Carton Item (SG14) SG14-M1S218A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 52
Q'ty/20cy (by air) pcs 520
Q'ty/40cy (by air) pcs 1092
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1493
Net Weight (by air) kg 249.6
Gross Weight (by air) kg 267.34
pallet Q'ty (by sea) pcs 80
Q'ty/20cy (by sea) pcs 800
Q'ty/40cy (by sea) pcs 1680
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2193
Net Weight (by sea) kg 384
Gross Weight (by sea) kg 401.74
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 540.2 x 220.1 x 396.8
Product Dimension with Stand (WxDxH) (inch) 21.27 x 8.67 x 15.62
Product Dimension without Stand (WxDxH) (mm) 540.2 x 52.7 x 322
Product Dimension without Stand (WxDxH) (inch) 21.27 x 2.07 x 12.68
Stand Dimension (WxDxH) (mm) 318 x 220.1 x 140
Stand Dimension (WxDxH) (inch) 12.52 x 8.67 x 5.51
Weight (Net kg) 3.
Weight (Net lbs) 6.61
Weight Without Stand (kg) 2.6
Weight Without Stand (lbs) 5.73
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 60 x 12.3 x 41
Inside Carton Dimension (WxDxH) (inch) 23.62 x 4.84 x 16.14
Outer Carton Dimension (WxDxH) (cm) 61.5 x 13.8 x 43.3
Outer Carton Dimension (WxDxH) (inch) 24.21 x 5.43 x 17.05
Weight (Gross kg) 4.8
Weight (Gross lbs) 10.58
Accessories
DisplayPort Cable 0
DisplayPort Cable Version NA
HDMI Cable 1
HDMI Cable Version 2.0b
DVI Cable 0
DVI Cable Version NA
USB Type A to Type B Cable 0
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 0
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Series Name Gaming
Segment Name MAG
Segment Name2 MAG 242
Segment Name3 MAG 242F
Barcode Info
EAN 4711377289795
