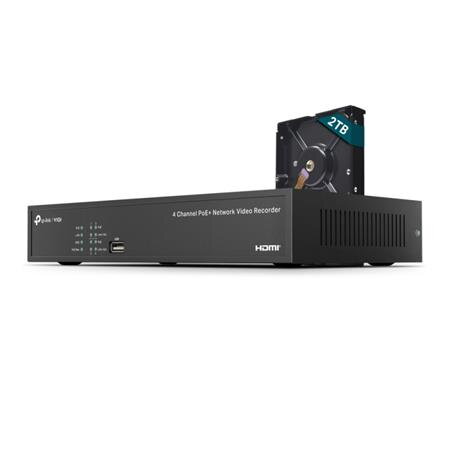

TP-LINK VIGI NVR1004H-4P-2TB Záznamové zařízení, 4 kanály, 4x Lan s PoE, 2x USB, 1x 2TB HDD

4-Channel Live View and 4K HDMI Video Output
4× 10/100 Mbps PoE+ Ports with 53 W PoE Budget?
2-ch @ 8MP/ 4-ch @ 4MP Decoding Capability*
4-Channel Synchronous Playback†
80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
1× SATA Interface and 1 Up to 10 TB (1× 2TB HDD Preinstalled)
H.265+ Compression Technology
HDMI and VGA Simultaneous Output
Remote Monitoring

VIDEO AND AUDIO
IP Video Input 4-Channel
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1/4

DECODING
Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
Synchronous Playback 4-Channel†
Capability
• 25fps:
2-ch @ 8MP, 4-ch @ 4MP
• 30fps:
4-ch @ 4MP, 3-ch @ 5MP

RECORD MANAGEMENT
Record Mode
• Manual Recording
• Scheduling Recording
• Motion Detection Recording

Playback Mode
• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback

Backup Mode
• Regular Backup
• Video Clip Backup

Playback Function
• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off

NETWORK
Protocol UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access Android, iOS
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF, CGI

EXTERNAL INTERFACE
Network Interface 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface 1, Audio In; 1, Audio Out
Alarm In/Out N/A
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
Speaker N/A
eSATA N/A
HDMI 1
VGA 1

HARD DISK
SATA 1 SATA Interface
Capacity
• Up to 10 TB Capacity for Each HDD
• 1 × 2TB HDD Preinstalled

POE
Standard 802.3at/af Compliant
Interface 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget 53 W? Available for All PoE+ Ports, 30 W Max per Port

ALARM
General Alarm
• Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame
Anomaly Alarm
• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
Alarm Linkage
• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm

GENERAL
Storage Temperature -40–70 °C
Storage Humidity 10%~90% RH Non-Condensing
Package Contents
• VIGI Network Video Recorder
• Power Adapter
• Power Cables
• Rubber Feet
• Mouse
• Quick Installation Guide

Working Temperature
• NVR: -10–55 °C
• Power Adapter: 0–40 °C

Working Humidity 10%~90% RH Non-Condensing
Dimensions ( W X D X H ) 246.2 × 148.2 × 45 mm
Power Supply 53.5V DC/1.31A

Power Consumption
• 4.25 W (Without Disk)
• 13.10 W (With Disk)
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
