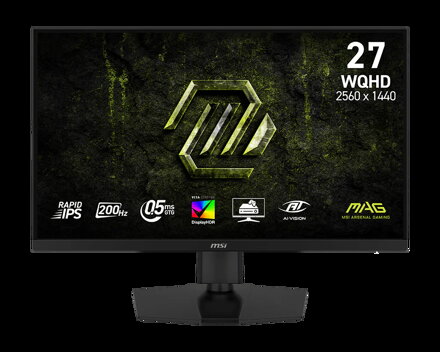

MSI Gaming monitor MAG 274QPF E20,27" Rapid IPS/2560x1440(WQHD)/200Hz/0,5ms/2xHDMI/DP/USB-C/Výšk. nastavitelný/Pivot

MSI Gaming monitor MAG 274QPF E20,27" Rapid IPS/2560x1440(WQHD)/200Hz/0,5ms/2xHDMI/DP/USB-C/Výšk. nastavitelný/Pivot

Website Name MAG 274QPF E20
Color ID1/Black-Black
Local Dimming 4 Zones
Display
Screen Size 27" (68.58 cm)
Active Display Area (mm) 596.736(H) x 335.664(V)
Curvature Flat
Panel Type Rapid IPS
Resolution 2560x1440 (WQHD)
Pixel pitch (mm) 0.2331(H)x0.2331(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range 48~200Hz
HDR (High dynamic range) VESA DisplayHDR 400
SDR Brightness (nits) 300
HDR Brightness (Peak nits) NA
Contrast Ratio 1000:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency 72~300 KHz(H) /48~200 Hz(V)
Refresh Rate 200HZ
Response Time (MPRT) NA
Response Time (GTG) 0.5ms (Min.)
Response Time (Tr + Tf) 1.9ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 108%/88%
NTSC (CIE1931 area percentage/overlap) 90%/83%
sRGB (CIE1976 area percentage/overlap) 124%/100%
sRGB (CIE1931 area percentage/overlap) 126%/100%
Adobe RGB (CIE1976 area percentage/overlap) 106%/92%
Adobe RGB (CIE1931 area percentage/overlap) 94%/85%
DCI-P3 (CIE1976 area percentage/overlap) 98%/95%
DCI-P3 (CIE1931 area percentage/overlap) 93%/92%
Rec.709 (CIE1976 area percentage/overlap) 124%/100%
Rec.709 (CIE1931 area percentage/overlap) 126%/100%
Rec.2020 (CIE1976 area percentage/overlap) 72%/71%
Rec.2020 (CIE1931 area percentage/overlap) 67%/67%
Quantum Dot Film NA
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits (8 bits + FRC)
Note_DP 2560 x1440 (Up to 200Hz)
Note_HDMI 2560x1440 (Up to 144Hz)
Note_DVI N/A
VESA DisplayHDR VESA DisplayHDR 400
VESA ClearMR NA
Delta E NA
I/O Ports
HDMI 2
HDMI version 2.0b
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4a (HBR3)
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A NA
USB 2.0 Type B NA
USB 2.0 Micro USB Type B
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker NA
Webcam NA
Lan Port NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type Internal Power Board
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 21 (SDR), 40 (HDR)
Annual Energy Consumption (KWh) 44
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating E (SDR) G (HDR)
Adapter's KC safety Number NA
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output Type C
PD Output Power 15W
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 130 mm
Adjustment (Pivot) -90° ~ 90°
VESA Mounting 100x100mm
Frameless Design Yes
Console Mode YES
HDMI CEC YES
Firmware Update YES
Stand Attachment Method Screw locking
Stand Type 4-way Ergonomic (Tilt + Lift + Swivel + Pivot)
Stand with Integrated Mini PC Mount NA
KVM Version NA
PIP/PBP Support
Optix Scope NA
Smart Crosshair Support
Remote Display NA
AI Gaming AI Vision
MSI OLED Care NA
Scaler FW Update Update by Firmware Update Utility (DP)
Carton
Carton Item (SG14) SG14-M1S245A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 22
Q'ty/20cy (by air) pcs 220
Q'ty/40cy (by air) pcs 462
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1386
Net Weight (by air) kg 202.4
Gross Weight (by air) kg 220.14
pallet Q'ty (by sea) pcs 38
Q'ty/20cy (by sea) pcs 380
Q'ty/40cy (by sea) pcs 798
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2191
Net Weight (by sea) kg 349.6
Gross Weight (by sea) kg 367.34
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 613.3 x 227.9 x 406.3
Product Dimension with Stand (WxDxH) (inch) 24.15 x 8.97 x 16.
Product Dimension without Stand (WxDxH) (mm) 613.3 x 57 x 365.4
Product Dimension without Stand (WxDxH) (inch) 24.15 x 2.24 x 14.39
Stand Dimension (WxDxH) (mm) 308.6 x 227.9 x 390.8
Stand Dimension (WxDxH) (inch) 12.15 x 8.97 x 15.39
Weight (Net kg) 6.8
Weight (Net lbs) 14.99
Weight Without Stand (kg) 4.3
Weight Without Stand (lbs) 9.48
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 84 x 14.8 x 47.5
Inside Carton Dimension (WxDxH) (inch) 33.07 x 5.83 x 18.7
Outer Carton Dimension (WxDxH) (cm) 85.5 x 16.3 x 49.8
Outer Carton Dimension (WxDxH) (inch) 33.66 x 6.42 x 19.61
Weight (Gross kg) 9.2
Weight (Gross lbs) 20.28
Accessories
DisplayPort Cable 1
DisplayPort Cable Version 1.4
HDMI Cable 0
HDMI Cable Version NA
DVI Cable 0
DVI Cable Version NA
USB Type A to Micro USB Type B cable
USB Type A to Type B Cable 0
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 0
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Segment Name2 MAG 274Q E20
Segment Name MAG
Series Name LCD
Segment Name3 MAG 274QPF E20
Extra Info
EOL Date
Barcode Info
UCC14 10824142435127
UPC 824142435120
JAN
EAN 4711377368131
