Dell Pro Thunderbolt 4 Smart Dock - SD25TB4 - 180W

Take on intensive workloads with the latest Thunderbolt 4 smart dock delivering up to 130W of power and remote management capabilities.

Technical Information
Connectivity Technology Wired
Number of Displays Supported 4

Video
Video Resolution
DP1.4 without Display Stream Compression
Up to:
4 x QHD (2560x1440) @ 60Hz
3 x WQHD (3440 x 1440) @ 60Hz
2 x 4K (3840x2160) @ 60Hz
1 x 5K WUHD (5120 x 2160) @ 60Hz

DP1.4 / DP2.1 with Display Stream Compression
Up to:
4 x 4K (3840x2160) @ 60Hz
3 x 4K (3840x2160) @ 60Hz
2 x 6K (6144 x 3456) @ 60Hz
1 x 8K (7680 x 4320) @ 60Hz

Power Description
Maximum Power Supply Wattage 180W

Network & Communication
Ethernet Technology
RJ45 Ethernet port, 2.5GbE

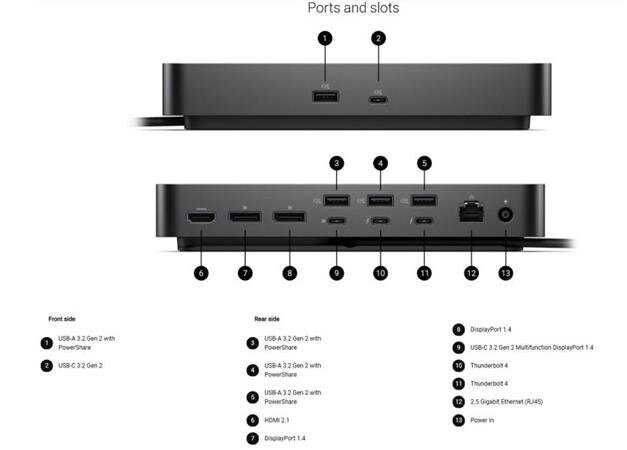

Interfaces/Ports
Interfaces
2 x DP1.4
1 x HDMI 2.1
1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
2 x Thunderbolt 4

USB Power Delivery
130W (Dell systems)
96W (Non-Dell systems)

Software
Operating System Supported
Windows 10
Windows 11
Ubuntu
Red Hat Enterprise Linux
ChromeOS
macOS
