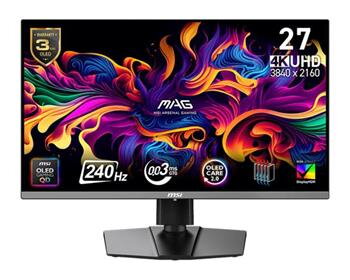

MSI MAG 272UP QD-OLED X24 Gaming monitor 26,5" QD-OLED/UHD/240Hz/0,03ms/2xHDMI/DP/USB-C/Výšk.nast/Pivot

MSI MAG 272UP QD-OLED X24 Gaming monitor 26,5" QD-OLED/UHD/240Hz/0,03ms/2xHDMI/DP/USB-C/Výšk.nast/Pivot

MKT Spec MAG 272UP QD-OLED X24
Website Name MAG 272UP QD-OLED X24
Color ID1/Black-Black
Local Dimming NA
Display
Screen Size 26.5" (67.31 cm)
Active Display Area (mm) 589.97(H) x 332.93(V)
Curvature Flat
Panel Type QD-OLED
Resolution 3840x2160 (UHD)
Pixel pitch (mm) 0.153(H)x0.153(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology Adaptive-Sync
Dynamic Refresh Rate Activated Range 48~240Hz
HDR (High dynamic range) True Black 400
SDR Brightness (nits) 250
HDR Brightness (Peak nits) 1000
Contrast Ratio 1500000:1
DCR (Dynamic Contrast Ratio) NA
Signal Frequency TBD
Refresh Rate 240HZ
Response Time (MPRT) NA
Response Time (GTG) 0.03ms
Response Time (Tr + Tf) 0.1ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 120.5%/93.8%
NTSC (CIE1931 area percentage/overlap) 103.6%/91.5%
sRGB (CIE1976 area percentage/overlap) 138.2%/100%
sRGB (CIE1931 area percentage/overlap) 146.2%/100%
Adobe RGB (CIE1976 area percentage/overlap) 118.4%/97.5%
Adobe RGB (CIE1931 area percentage/overlap) 108.4%/94%
DCI-P3 (CIE1976 area percentage/overlap) 110.1%/99%
DCI-P3 (CIE1931 area percentage/overlap) 107.8%/98.4%
Rec.709 (CIE1976 area percentage/overlap) 138.2%/100%
Rec.709 (CIE1931 area percentage/overlap) 146.2%/100%
Rec.2020 (CIE1976 area percentage/overlap) 80.2%/80.2%
Rec.2020 (CIE1931 area percentage/overlap) 77.3%/77.3%
Quantum Dot Film NA
Surface Treatment Anti-Reflection
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits
Note_DP 3840 x 2160 (Up to 240Hz)
Note_HDMI 3840 x 2160 (Up to 240Hz)
Note_DVI N/A
VESA DisplayHDR VESA DisplayHDR 400
VESA ClearMR VESA ClearMR 13000
Delta E Delta E ? 2 (Pre-Calibration)
I/O Ports
HDMI 2
HDMI version 2.1
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4a
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A NA
USB 2.0 Type B NA
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader NA
Lock type Kensington Lock
Speaker NA
Webcam NA
Lan Port NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type Internal Power Board
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 25
Annual Energy Consumption (KWh) 25
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating F
Adapter's KC safety Number N/A
Power Cord Type C13
QC Output NA
QC Output Power NA
PD Output YES
PD Output Power 15W
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 15°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 110 mm
Adjustment (Pivot) -90° ~ 90°
VESA Mounting 100x100mm
Frameless Design Yes
Console Mode YES
HDMI CEC YES
Firmware Update YES
Stand Attachment Method N/A
Stand Type N/A
Stand with Integrated Mini PC Mount N/A
KVM Version NA
PIP/PBP Support
Optix Scope Support
Smart Crosshair Support
Remote Display NA
AI Gaming Support
MSI OLED Care 2.0
Scaler FW Update Update by Gaming Intelligence (USB + DP)
Carton
Carton Item (SG14) SG14-M1S248A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 18
Q'ty/20cy (by air) pcs 180
Q'ty/40cy (by air) pcs 378
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1340
Net Weight (by air) kg 8
Gross Weight (by air) kg 11.125
pallet Q'ty (by sea) pcs 32
Q'ty/20cy (by sea) pcs 320
Q'ty/40cy (by sea) pcs 672
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2195
Net Weight (by sea) kg 8
Gross Weight (by sea) kg 11.125
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 610.31 x 241.9 x 532.03
Product Dimension with Stand (WxDxH) (inch) 24.03 x 9.52 x 20.95
Product Dimension without Stand (WxDxH) (mm) 610.31 x 69.15 x 356.4
Product Dimension without Stand (WxDxH) (inch) 24.03 x 2.72 x 14.03
Stand Dimension (WxDxH) (mm) 308.67 x 241.9 x 432.1
Stand Dimension (WxDxH) (inch) 12.15 x 9.52 x 17.01
Weight (Net kg) 8.
Weight (Net lbs) 17.64
Weight Without Stand (kg) 5.3
Weight Without Stand (lbs) 11.68
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 82 x 16.9 x 51.3
Inside Carton Dimension (WxDxH) (inch) 32.28 x 6.65 x 20.2
Outer Carton Dimension (WxDxH) (cm) 83.3 x 18.2 x 53.5
Outer Carton Dimension (WxDxH) (inch) 32.8 x 7.17 x 21.06
Weight (Gross kg) 11.13
Weight (Gross lbs) 24.53
Accessories
DisplayPort Cable 1
DisplayPort Cable Version 1.4a
HDMI Cable 1
HDMI Cable Version 2.1
DVI Cable 0
DVI Cable Version NA
USB Type A to Type B Cable 0
USB Type C to Type A Cable 0
USB Type C to Type C Cable 0
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 0
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 4
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Series Name OLED
Segment Name MAG
Segment Name2 MAG 272U X24
Segment Name3 MAG 272UP QD-OLED X24
Barcode Info
EAN 4711377304450
