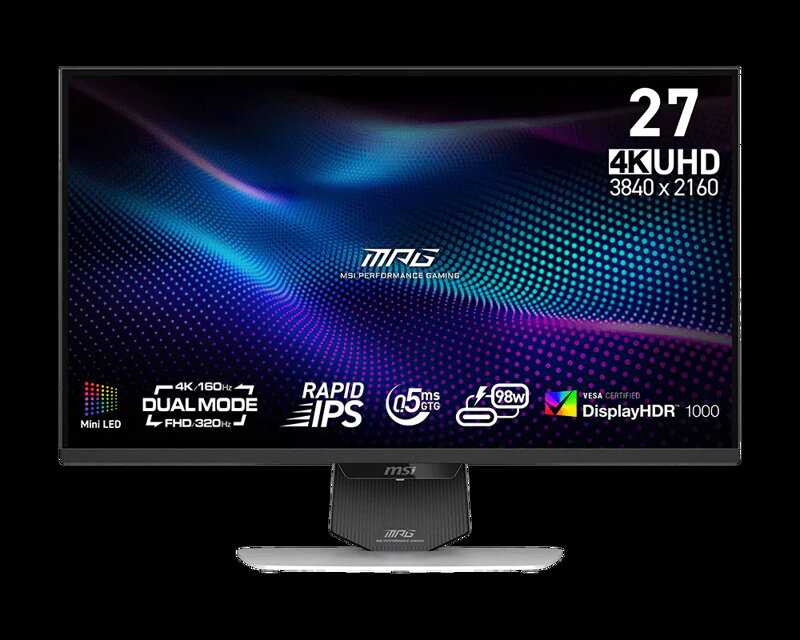

MSI Gaming monitorMPG 274URDFW E16M, 27" Mini-LED/3840x2160(UHD)/160Hz/0,5ms/2x HDMI/DP/USB-A,B,C/Výšk. nast./Pivot/bílá

MSI Gaming monitorMPG 274URDFW E16M, 27" Mini-LED/3840x2160(UHD)/160Hz/0,5ms/2x HDMI/DP/USB-A,B,C/Výšk. nast./Pivot/bílá

Website Name MPG 274URDFW E16M
Color ID1/White-White
Local Dimming 1152 Zones
Display
Screen Size 27" (68.58 cm)
Active Display Area (mm) 596.16(H) x 335.34(V)
Curvature Flat
Panel Type Rapid IPS Mini-LED
Resolution 3840x2160 (UHD)
Pixel pitch (mm) 0.15525(H)x0.15525(V)
Aspect Ratio 16:9
Dynamic Refresh Rate technology NVIDIA G-SYNC Compatible / AMD FreeSync™ Premium
Dynamic Refresh Rate Activated Range UHD : 48~160Hz; FHD : 48~320Hz
HDR (High dynamic range) VESA DisplayHDR 1000
SDR Brightness (nits) 400
HDR Brightness (Peak nits) 1000
Contrast Ratio 1000:1
DCR (Dynamic Contrast Ratio) 100000000:1
Signal Frequency UHD:180~356 KHz(H) / 48~160 Hz(V), FHD:180~356 KHz(H) / 48~320 Hz(V)
Refresh Rate UHD:160Hz, FHD:320Hz
Response Time (MPRT) 1ms(MPRT)
Response Time (GTG) 0.5ms (Min.)
Response Time (Tr + Tf) 1ms
View Angles 178°(H)/178°(V)
NTSC (CIE1976 area percentage/overlap) 122%/96%
NTSC (CIE1931 area percentage/overlap) 111%/98%
sRGB (CIE1976 area percentage/overlap) 140%/100%
sRGB (CIE1931 area percentage/overlap) 157%/100%
Adobe RGB (CIE1976 area percentage/overlap) 120%/100%
Adobe RGB (CIE1931 area percentage/overlap) 116%/100%
DCI-P3 (CIE1976 area percentage/overlap) 113%/98%
DCI-P3 (CIE1931 area percentage/overlap) 116%/97%
Rec.709 (CIE1976 area percentage/overlap) 140%/100%
Rec.709 (CIE1931 area percentage/overlap) 157%/100%
Rec.2020 (CIE1976 area percentage/overlap) 81%/81%
Rec.2020 (CIE1931 area percentage/overlap) 82%/82%
Quantum Dot Film YES
Surface Treatment Anti-glare
Touch Screen Non-touch
Display Colors 1.07B
Color bit 10 bits (8 bits + FRC)
Note_DP UHD:3840 x2160 (Up to 160Hz), FHD:1920 x 1080 (Up to 320Hz)
Note_HDMI UHD:3840 x2160 (Up to 160Hz) with FRL 6G + DSC, FHD:1920 x 1080 (Up to 320Hz)with FRL 6G + DSC
Note_DVI N/A
VESA DisplayHDR VESA DisplayHDR 1000
VESA ClearMR NA
Delta E Delta E ? 2 (Pre-Calibration)
I/O Ports
HDMI 2
HDMI version 2.1 (FRL 6G)
HDMI HDCP version 2.3
DisplayPort 1
DisplayPort version 1.4a (HBR3)
DisplayPort HDCP version 2.3
Thunderbolt NA
Thunderbolt version NA
Thunderbolt HDCP version NA
USB Type C (DisplayPort Alternate) 1
DVI NA
D-Sub NA
Line-in NA
Mic-in NA
Mic-in upstream NA
Headphone-out 1
Audio Combo NA
USB 2.0 Type A 2
USB 2.0 Type B 1
USB 2.0 Micro USB Type B N/A
USB 2.0 Type C NA
USB 3.2 Gen 1 Type A NA
USB 3.2 Gen 1 Type B NA
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
Card reader N/A
Lock type Kensington Lock
Speaker NA
Webcam NA
Lan Port NA
Power
Country EU
Territory EU
Entity EU OBD
Power Type External Adaptor 24V 11A
Power Input 100~240V, 50/60Hz
On-mode Power Consumption (KWh/1000h) 26
Annual Energy Consumption (KWh) 26
Standby-mode Power Consumption (W) 0.5
Off-mode Power Consumption (W) 0.3
Energy Efficiency Rating F
Adapter's KC safety Number HU10878-23008B
Power Cord Type C5
QC Output NA
QC Output Power NA
PD Output YES
PD Output Power 98W
Warranty
Warranty 36M
Design
Adjustment (Tilt) -5° ~ 20°
Adjustment (Swivel) -30° ~ 30°
Adjustment (Height) 0 ~ 110 mm
Adjustment (Pivot) -90° ~ 90°
VESA Mounting 100x100mm
Frameless Design Yes
Console Mode v
HDMI CEC v
Firmware Update v
Stand Attachment Method Toolless locking
Stand Type 4-way Ergonomic (Tilt + Lift + Swivel + Pivot)
Stand with Integrated Mini PC Mount NA
KVM Version KVM 1.0
PIP/PBP Support
Optix Scope Support
Smart Crosshair Support
Remote Display Support
AI Gaming Support
MSI OLED Care NA
Scaler FW Update Update by Firmware Update Utility (USB)
Carton
Carton Item (SG14) SG14-M1S263A-MNT
pcs/Carton 1
Pallet
pallet Q'ty (by air) pcs 12
Q'ty/20cy (by air) pcs 120
Q'ty/40cy (by air) pcs 252
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1075
Net Weight (by air) kg 98.4
Gross Weight (by air) kg 168.8
pallet Q'ty (by sea) pcs 24
Q'ty/20cy (by sea) pcs 240
Q'ty/40cy (by sea) pcs 504
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2030
Net Weight (by sea) kg 196.8
Gross Weight (by sea) kg 317.6
Dimension & Weight (product)
Product Dimension with Stand (WxDxH) (mm) 613.1 x 202.38 x 400.85
Product Dimension with Stand (WxDxH) (inch) 24.14 x 7.97 x 15.78
Product Dimension without Stand (WxDxH) (mm) 613.10 x 68.77 x 375.31
Product Dimension without Stand (WxDxH) (inch) 24.14 x 2.71 x 14.78
Stand Dimension (WxDxH) (mm) 312.53 x 202.38 x 402.73
Stand Dimension (WxDxH) (inch) 12.3 x 7.97 x 15.86
Weight (Net kg) 8.2
Weight (Net lbs) 18.08
Weight Without Stand (kg) 4.8
Weight Without Stand (lbs) 10.58
Dimension & Weight (box)
Inside Carton Dimension (WxDxH) (cm) 90.5 x 19.5 x 47
Inside Carton Dimension (WxDxH) (inch) 35.63 x 7.68 x 18.5
Outer Carton Dimension (WxDxH) (cm) 92 x 20.8 x 49.4
Outer Carton Dimension (WxDxH) (inch) 36.22 x 8.19 x 19.45
Weight (Gross kg) 12.4
Weight (Gross lbs) 27.34
Accessories
DisplayPort Cable 1
DisplayPort Cable Version 1.4a
HDMI Cable 1
HDMI Cable Version 2.1
DVI Cable 0
DVI Cable Version na
USB Type A to Micro USB Type B cable N/A
USB Type A to Type B Cable 1
USB Type C to Type A Cable 0
USB Type C to Type C Cable 1
Thunderbolt Cable 0
VGA Cable 0
3.5mm audio Cable 0
3.5mm combo audio Cable 0
3.5mm Mic Cable 0
Power Cord 1
AC Adaptor 1
Quick Guide 1
Warranty Card 0
Mouse Bungee Unit 0
VESA Screw 4
Switch Case 0
Portable Screen Protection Case 0
Monitor Hood 0
Speaker (Accessories) 0
Model Info
Segment Name2 MPG 274U E16
Segment Name MPG
Series Name LCD
Segment Name3 MPG 274URDFW E16M
Extra Info
EOL Date
Barcode Info
UCC14 10824142402723
UPC 824142402726
JAN
EAN 4711377300322
