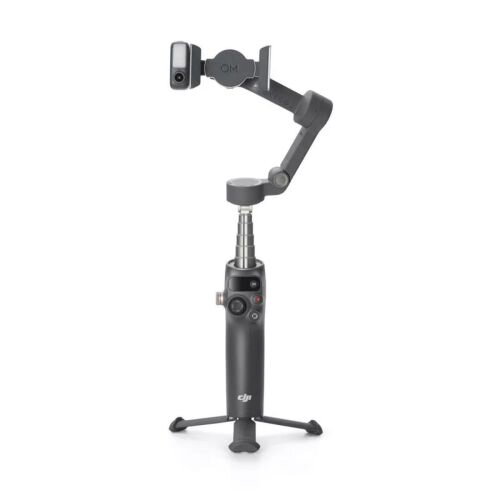

DJI Osmo Mobile 8 Black EU (CP.OS.00000492.01)

General:

• Dimensions:




  • Unfolded: 288 × 107 × 96 mm (L × W × H)


  • Folded: 190 × 95 × 46 mm (L × W × H)






• Weight: Approx. 370 g (Gimbal + Built-in Tripod + Magnetic Phone Clamp + Multifunctional Module)

Extension Rod:

• Built-in Extension Rod


• Max Extension Length: 215 mm

Compatibility:

• Compatible Phone Weight: 170–300 g


• Compatible Phone Thickness: 6.9–10 mm


• Compatible Phone Width: 67–84 mm

Bottom Port:

• 1/4″-20 UNC port

Battery:

• Type: Li-Po 1S


• Capacity: 3350 mAh


• Energy: 12.06 Wh


• Charging Temperature: 5° to 40° C (41° to 104° F)


• Operating Temperature: 0° to 40° C (32° to 104° F)


• Operating Time:




  • Approx. 10 hours (balanced and stationary without accessories)


  • Approx. 5 hours (with intelligent tracking enabled, fill light off)


  • Approx. 4 hours (with intelligent tracking and fill light at max brightness)






• Charging Time: Approx. 2.5 hours (with a 10W USB-C charger)


• Gimbal Charging Port: USB-C


• Phone Charging: Supported

Gimbal:

• Controllable Range:




  • Pan: 360° (unlimited rotation)


  • Roll: -67° to 245°


  • Tilt: -20° to 40°






• Mechanical Range:




  • Pan: 360° (unlimited rotation)


  • Roll: -77° to 255°


  • Tilt: -224° to 100°






• Max Control Speed: 120°/s

Wireless Mode:

• Model: Bluetooth 5.3

Software:

• App: DJI Mimo

Tripod:

• Dimensions: Built-in Tripod Length: 67 mm

Multifunctional Module:

• GFSK: 2 Mbps


• GFSK Transmitter Power (EIRP): < 16 dBm


• GFSK Operating Frequency: 2.4000–2.4835 GHz


• Bluetooth Protocol: Bluetooth 5.3


• Bluetooth Transmitter Power (EIRP): < 16 dBm


• Bluetooth Operating Frequency: 2.4000–2.4835 GHz

Fill Light:

• Illuminance: 40 lux (measured at 0.6 meters)


• Color Temperature: 2500–6000 K
