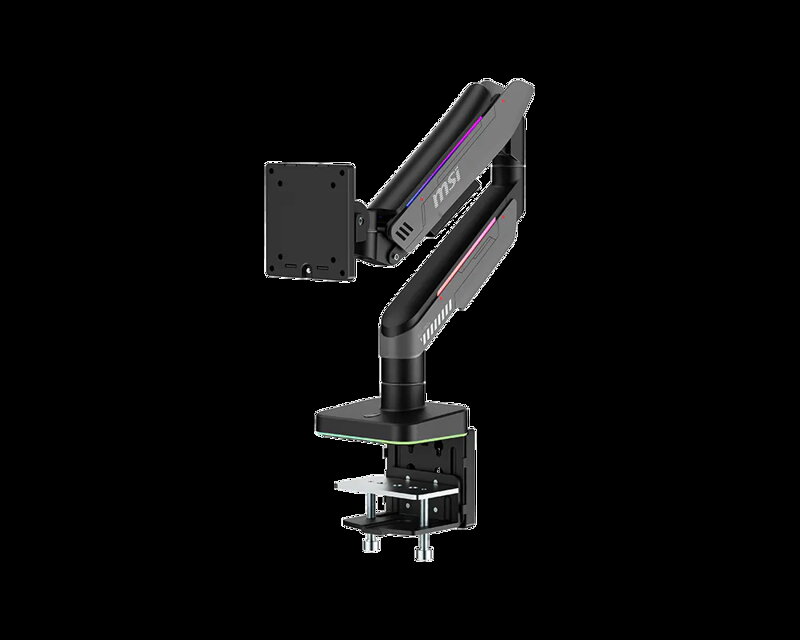

MSI stolní rameno pro monitor MPG MT201RG, kloubové nastavitelné, 2-20kg, 17"-49", černá

MSI stolní rameno pro monitor MPG MT201RG, kloubové nastavitelné, 2-20kg, 17"-49", černá

MKT Name MPG MT201RG
Entity MKT Name
VESA Bracket Spec
VESA Bracket Material Steel
VESA Bracket Color Matte Black
VESA Size (mm) 116 x 116 mm
VESA 75x75 (mm) Yes
VESA 100x100 (mm) Yes
VESA Tilt Range (degree) -20° ~ 50°
VESA Swivel Range (degree) -90° ~ 90°
VESA Rotation Range (degree) -180° ~ 180°
VESA Bracket Length (mm) 84 mm
Upper ARM Spec
Upper arm Material Aluminum + Steel + Plastic
Upper arm Color (side cover) Matte Black & Dark Grey
Upper arm Color (deco) Matte Black & Dark Grey
Upper arm Length (mm) 235 ~ 283 mm
Upper arm Lift Range (mm) 217 ~ 500 mm
Upper arm Swivel Range (degree) -180° ~ 180°
Lower ARM Spec
Lower arm Material Aluminum + Steel + Plastic
Lower arm Color (side cover) Matte Black & Dark Grey
Lower arm Color (deco) Matte Black & Dark Grey
Lower arm Length (mm) 175 mm
Lower arm Swivel Range (degree) -145° ~ 145°
Mount Base Spec
Mount Type Table Mount
Mount Base Material Aluminum + Steel + Plastic
Mount Base Color Matte Black
Clamp Installing Yes
Grommet Installing Yes
Clamp thinckness (mm) 10 ~ 85 mm
Grommet thinckness (mm) 10 ~ 48 mm
Grommet installation holes (mm) 10 ~ 60 mm
I/O ports
USB 2.0 Type A (Quantity) 1
USB 2.0 Type C (Quantity) N/A
USB 3.2 Gen 1 Type A (Quantity) N/A
USB 3.2 Gen 1 Type C (Quantity) N/A
USB 3.2 Gen 2x2 Type C (Quantity) N/A
Card reader N/A
Audio Out N/A
Power
Power type USB-A
Design
Fit Screen Size 17" ~ 49"
Arm Type Gas Spring Monitor Arm
Maximum Display Single
Color Matte Black & Dark Grey
RGB Lighting ARGB
Mystic Light NA
Packaging Gift Box
Packaging Type Pizza Box
Packaging Material EE Corrugated Paper
Carton
Carton Item (SG14) SG14-M1S340A-ARM
pcs/Carton 3
Dimension & Weight (Product)
Product Dimension (WxDxH) (mm) 138 x 553 x 659 mm
Max Extension (Vertical per ARM) (mm) 500 mm
Max Extension (Horizontal per ARM) (mm) 542 mm
Weight Capacity for Flat Screen (per screen) kg 2 ~ 20 kg
Weight Capacity for Curved Screen (per screen) kg 2 ~ 20 kg
Weight Capacity for Flat Screen (per screen) lbs 4.4 ~ 44 lbs
Weight Capacity for Curved Screen (per screen) lbs 4.4 ~ 44 lbs
Weight (Net kg) 4.88 kg
Weight (Net lbs) 10.76 lbs
Dimension & Weight (Box)
Inside Carton Dimension (WxDxH) (cm) 48.1 x 32.4 x 12.1 cm
Outer Carton Dimension (WxDxH) (cm) 49.6 x 34.2 x 38.7 cm
Weight (Gross kg) 6.3 kg
Weight (Gross lbs) 13.9 lbs
Pallet
pallet Q'ty (by air) pcs 54
Q'ty/20cy (by air) pcs 540
Q'ty/40cy (by air) pcs 1134
Dimension (L)(by air) mm 1200
Dimension (W)(by air) mm 1000
Dimension (H)(by air) mm 1341
Net Weight (by air) kg 356.58
Gross Weight (by air) kg 374.58
pallet Q'ty (by sea) pcs 90
Q'ty/20cy (by sea) pcs 900
Q'ty/40cy (by sea) pcs 1890
Dimension (L)(by sea) mm 1200
Dimension (W)(by sea) mm 1000
Dimension (H)(by sea) mm 2085
Net Weight (by sea) kg 594.3
Gross Weight (by sea) kg 623.8
Accessories
Upper Arm 1
Lower Arm 1
Mount Base 1
VESA Mount Plate 1
L-Bracket (For Mount Base) 2
Cable Holder 2
C-Clamp N/A
Grommet Plate 3
M4 Screw (M4x12) 4
M4 Screw (M4x16) N/A
M6 Screw (M6x10) N/A
M6 Screw (M6x16) N/A
M8 Screw (M8x30) N/A
Washer (D5 5mm) 4
Spacer (?15x?8x5mm) N/A
Allen Wrench (4mm) 1
Long Allen Wrench (5mm) N/A
Long Allen Wrench (6mm) 1
RGB Power Cable 1
Quick Guide - ???? N/A
Warranty card - ??? 36months
User Manual - ???? 1
Model Info
Segment Name MPG
Series Name ARM
Segment Name2 MPG MT201
Segment Name3 MPG MT201RG
Extra Info
EOL Date
Barcode Info
EAN 4711377421966
JAN
UPC 824142452974
UCC14 10824142452971
